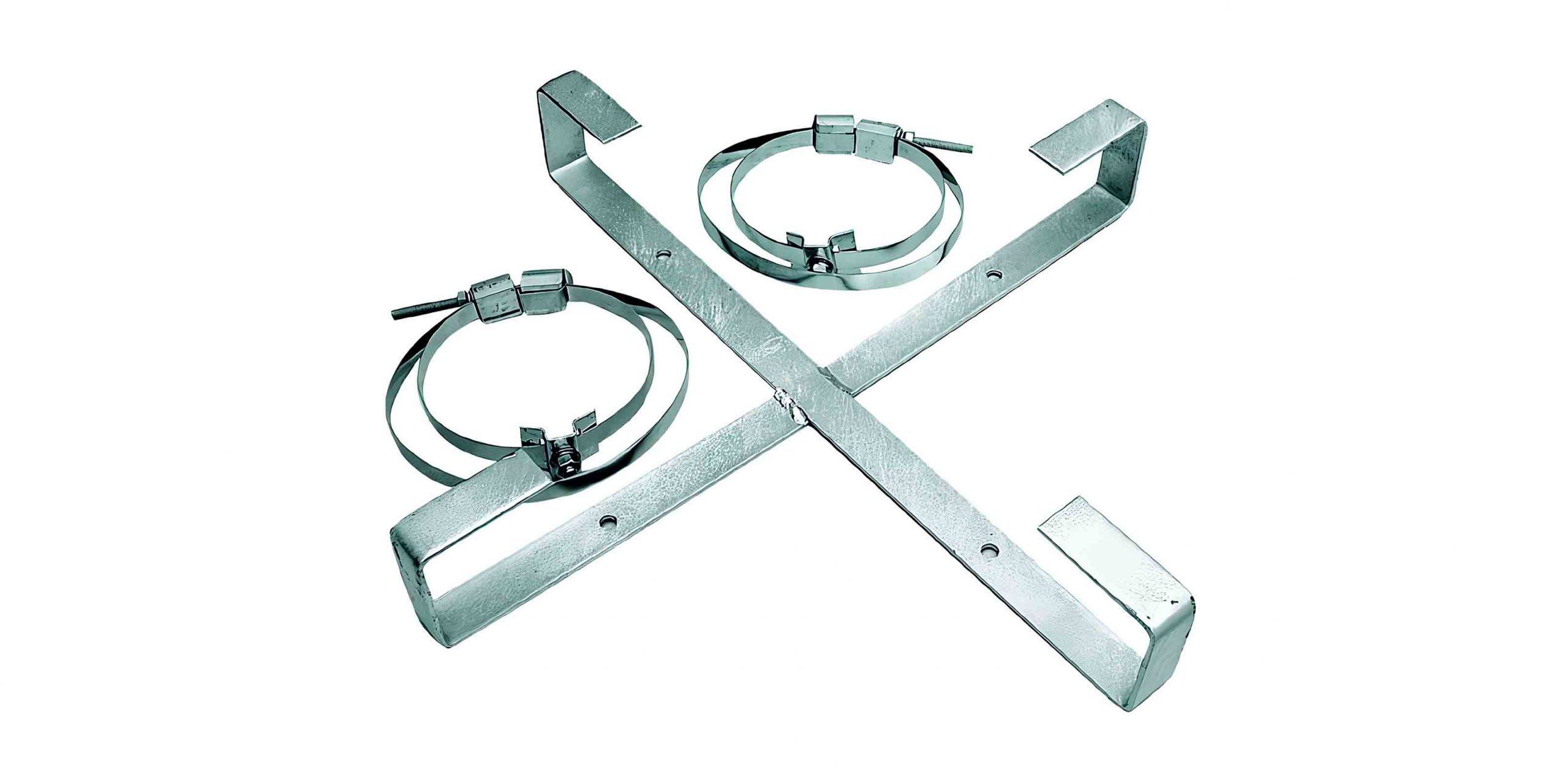

Cable Storage Assembly

Cable Storage Assembly is used for storage of reserved optical fibre cable. It is divided into Inserted type storage and Outside coil type storage, they are generally installed on the strain tower and pole.

1、Cable Storage Assembly
2、Pole Use / Tower Use
3、Inserted Type / Outside Coil Type Storage





Cable Storage Assembly
Cable Storage Assembly is used for storage of reserved optical fiber cable.
it is divided into inserted type storage and outside coil type storage.
they are generally installed on the strain tower and pole





Usage: Pillar for pole is used to fix Cable Storage Assembly on the pole;Small Clamp is used to fix Cable Storage Assembly on the tower.

Note:
T-Use for tower, G-Use for pole, ***-pole Dia.(mm), LT、LG-Outside coil type storage, LTN, LGN-Inserted type storage.
It needs two pairs of clamps when cable storage assembly installation on the tower.It needs two pairs of pillars when cable storage assembly installation on the pole.



Small clamp for tower





Pillar for Pole





Purpose: Used to place excess optical cables when splicing optical cables. Generally, each connector box is equipped with a spare cable rack.
Ordering requirements: The residual cable rack is divided into two types: pole use and tower use. If it is for pole use, the diameter of the pole must be provided.
