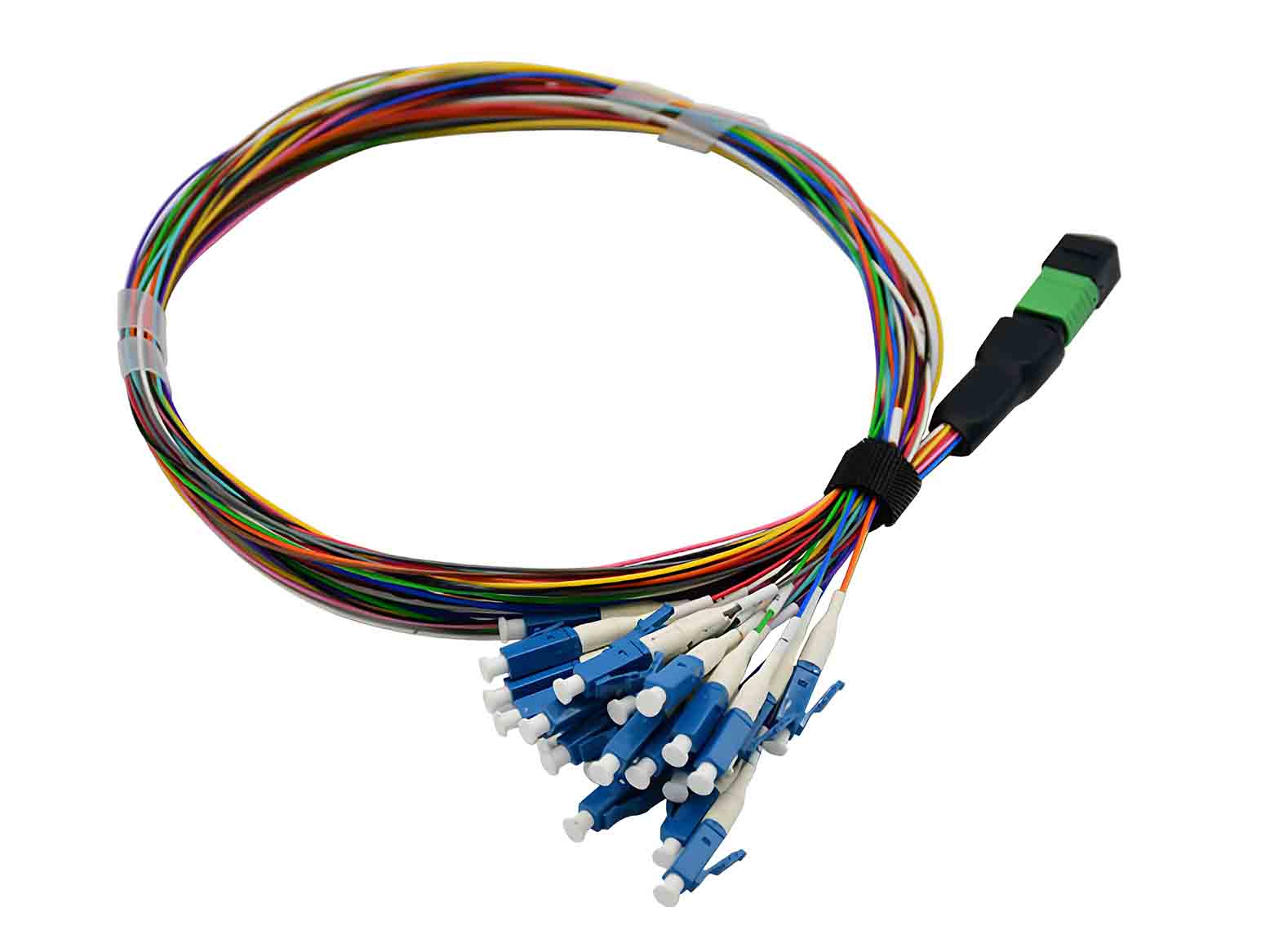

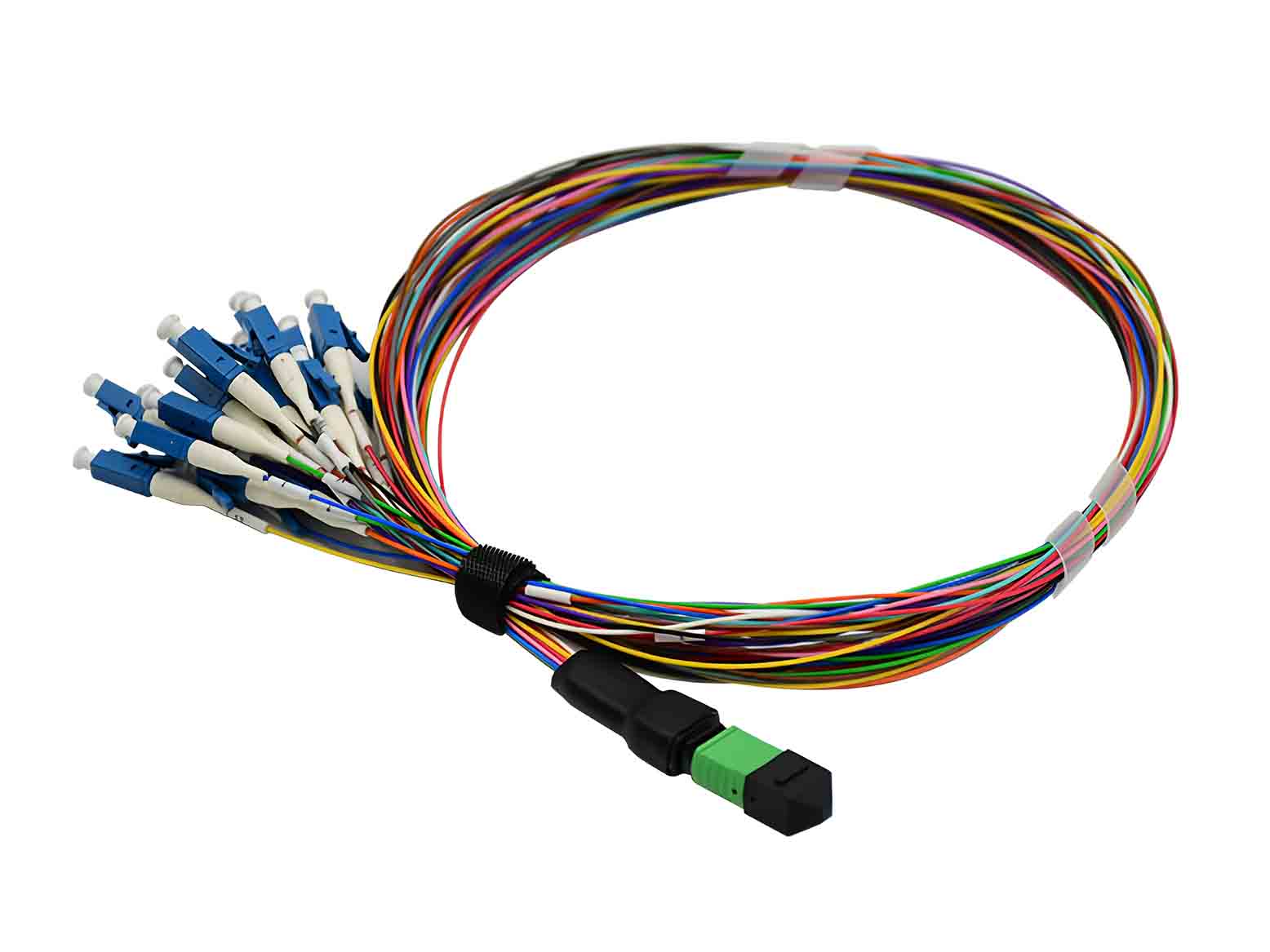

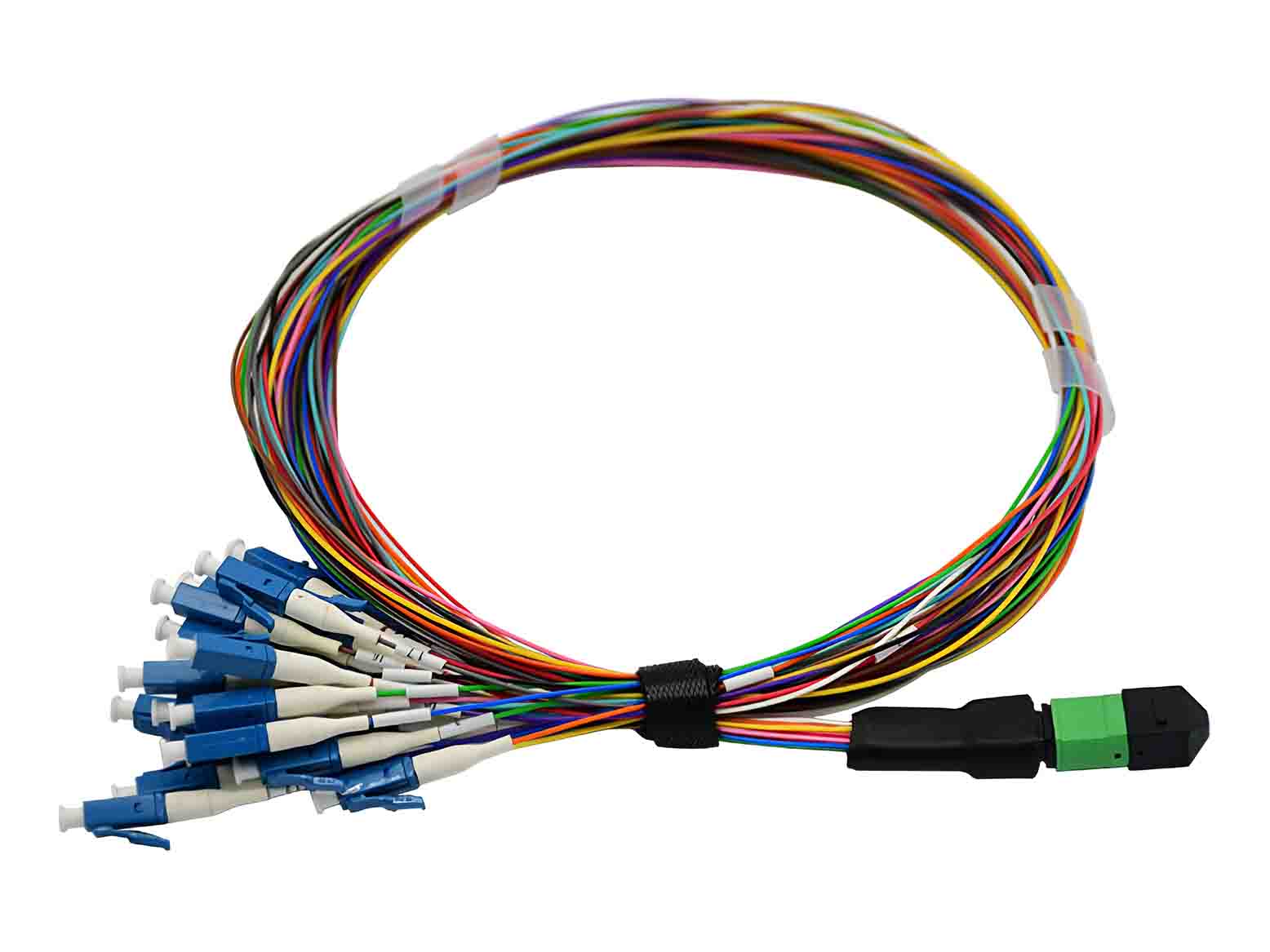

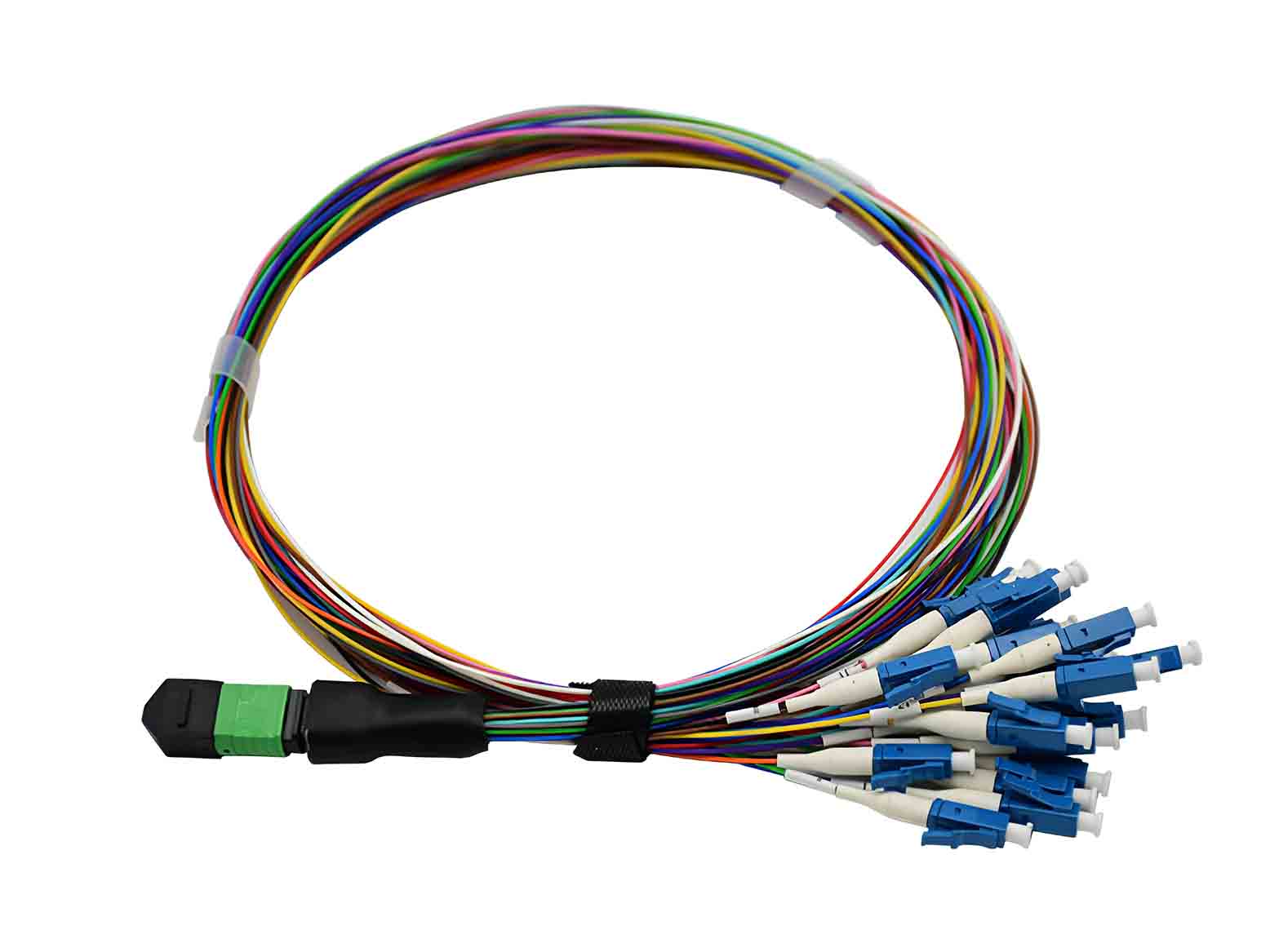

MPO fiber optic jumper, MPO (Multi fiber PushOn) connector is one of the MT series connectors. The MT series connectors use two guide holes with a diameter of 0.7mm on the left and right sides of the plug end face to accurately connect with the guide pin (also known as PIN pin). MPO connectors and fiber optic cables can be processed to produce various forms of MPO jumpers. MPO jumpers can have a design of 2-12 cores, up to 24 cores, and the most commonly used MPO connectors are 12 cores. The compact design of MPO connectors allows for a larger number of MPO jumper cores and a smaller size. MPO jumpers are widely used in wiring environments that require high-density integrated fiber optic lines, such as FTTX, 40/100GSFP, SFP+, and other transceiver modules or equipment connections.
1、Data communication network.
2、Optical System Access network.
3、Storage area networking fiber channel.
4、High density architectures。
1、100% pre-terminated and tested in factory to ensure transfer performance.
2、Cable Jacket material: LSZH, OFNR, OFNP available.
3、Economical solution for mass-termination of fiber
4、Designed for low loss and standard loss SM and MM applications
5、Ruggedized round cable, oval cable and bare ribbon options available
6、Good in repeatability and exchangeability
MPO/MTP Harnesses Cables
