ADSS cable，which stands for “All-Dielectric Self-Supporting” cable,is a type of fiber optic cable designed for use in overhead installations. It is known for its self-supporting nature，which means it doesn’t require a separate support structure like a messenger wire or metal conductor to bear its weight. Instead，ADSS cables are designed to be hung directly between utility poles，transmission towers，or other supporting structures.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath
Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

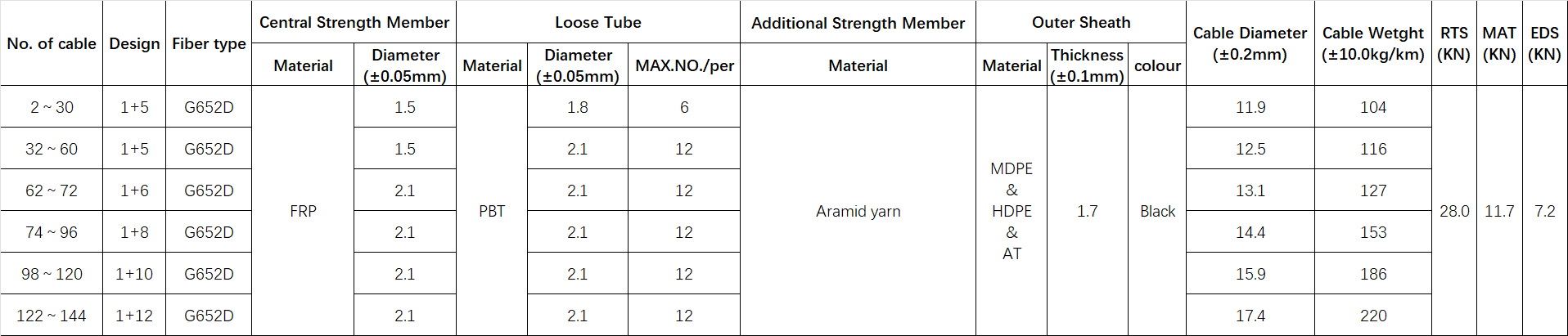

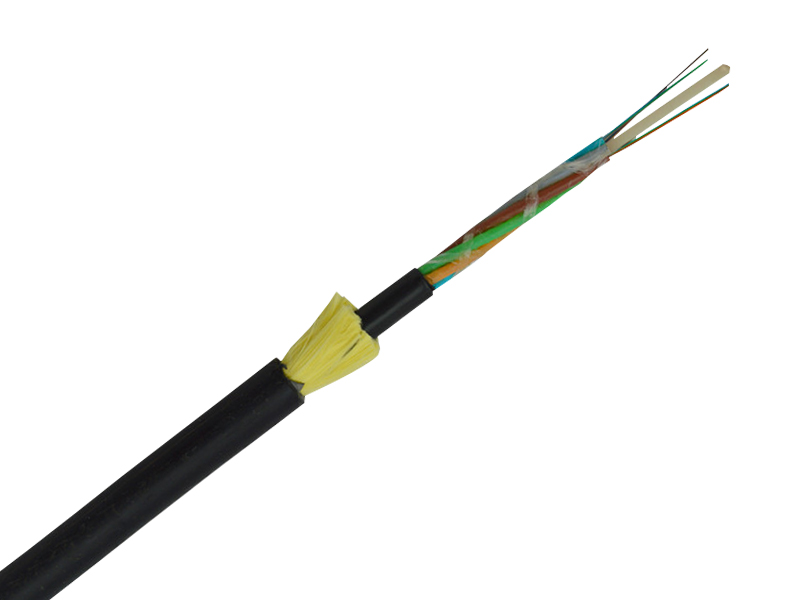

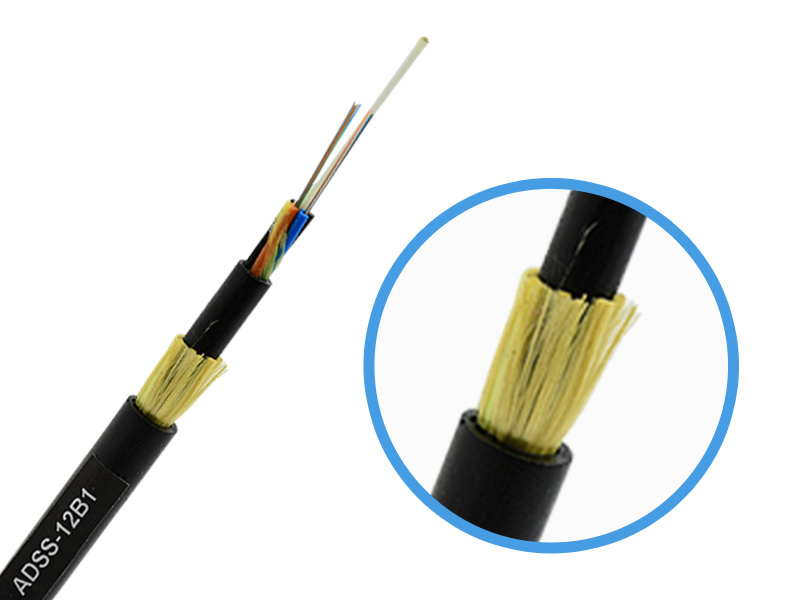

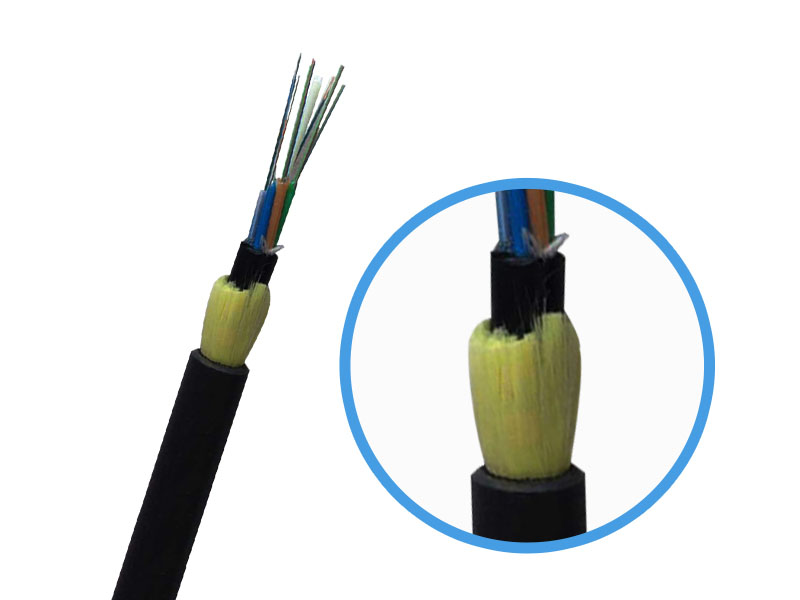

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、Dielectric Design：ADSS cables are made of dielectric (non-metallic) materials，including the central optical fibers and the outer sheath. This design is essential for use in high-voltage environments，where electrical conductivity could be a safety concern.
2、Strength Members：To provide the necessary tensile strength，ADSS cables typically include aramid or fiberglass strength members within the cable’s core. These strength members help the cable withstand the mechanical stresses of wind，ice，and other environmental factors.
3、Weather Resistance：ADSS cables are engineered to withstand various weather conditions，including high winds，ice，and exposure to ultraviolet (UV) radiation. The outer sheath is often UV-resistant to protect the cable from sun damage.
4、Lightweight：ADSS cables are relatively lightweight compared to traditional metallic cables，making them easier to install on existing infrastructure.
ADSS cables are commonly used in telecommunications and data networks to provide high-speed data transmission over long distances. They are also used in the power utility industry for communication purposes，enabling monitoring and control of the electrical grid. The self-supporting nature of ADSS cables makes them a practical and cost-effective choice for various aerial installation scenarios，as they can be strung along existing infrastructure without the need for additional support wires or hardware.
Standard length：2000m, other lengths are also available
