Multi-core Bundle Armored Cable，GJFJV+SV





GJFJV+SV cable types

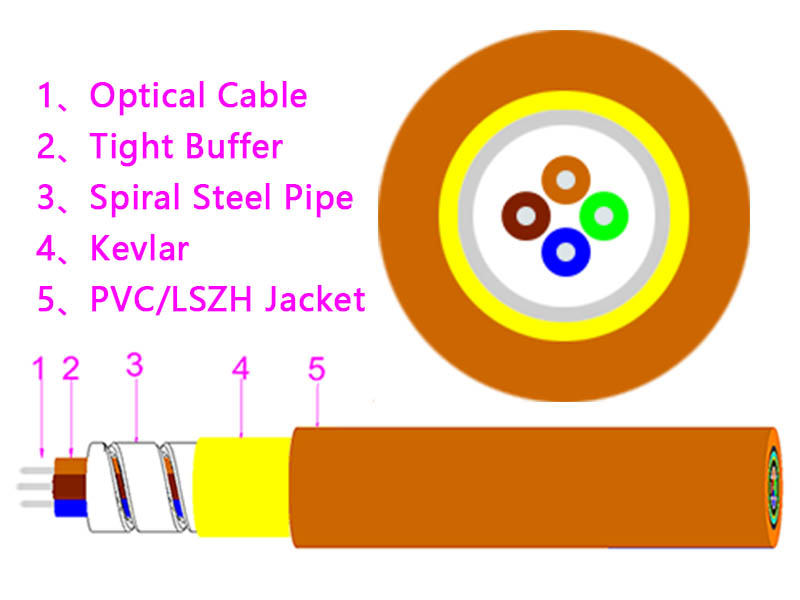

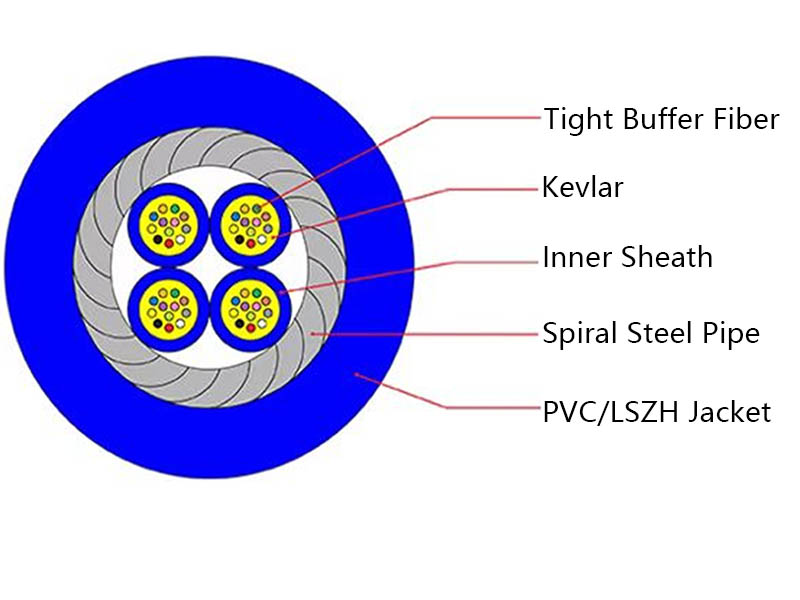

The structure of the optical fiber cable is the multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A PVC or LSZH inner jacket is extruded on the stranded surface as a subunit, and the multi-core bundle subunit is twisted into a circle In its outer layer winding a layer of steel wire armor, steel wire armor applied a small amount of aramid, then extruded PVC or LSZH outer sheath.



GJFJV+SV cable Features

1、Miniature cable, high-strength aramid reinforced,high-performance jacket material protection；
2、Bending radius is small, lightweight, soft, flexible,easy to follow；
3、Flat wire armored to improve the optical cable compression and anti-rat ability；
4、Has good mechanical and environmental performance；
5、Flame retardant or non-flame retardant outer jacket to provide good safety protection.



GJFJV+SV cable Applications:

1、 All kinds of connector；

2、Fiber optic pigtails, patch cords；

3、Fiber optic equipment, fiber optic patch panel, fiber to the desk, etc；

4、Fiber optic equipment and instrument；

5、Indoor cabling, building cabling, LAN, etc；

6、Long distance, outdoor/indoor cabling, trunking, etc；

7、Backbone network to the equipment in the building；

8、Small installation space cabling.

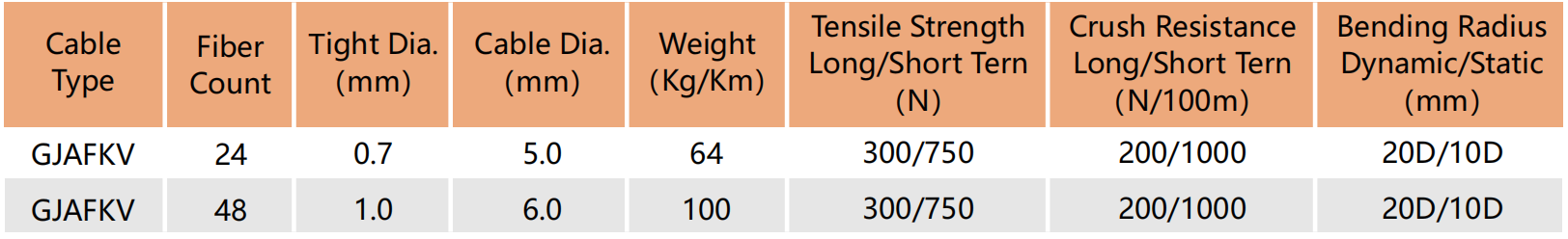

GJFJV+SV cable specifications:





Product Standards：

GJSFJBV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc.; and meet the requirements of UL approval for OFNR, OFNP



Standard length：2000m, other lengths are also available

Note: The structure’s size and specifications can be desianed according to customer requirements
